CF Separator Super Strong Magnetic Series
Magnetic separators are ideal for removing magnetizable solid particles from liquids, such as for grinding machines and other machine tool coolant(cutting or emulsion)purification.Through the magnetic roller of the separator, the iron filings in the coolant are drawn out to keep the coolant clean. The use of the magnetic separator can reduce the number of corrections of the grinding wheel, improve the surface roughness of the work piece, extend the service life of the grinding wheel and the coolant, and reduce the labor intensity of the workers and reduce the environmental pollution of the waste coolant.

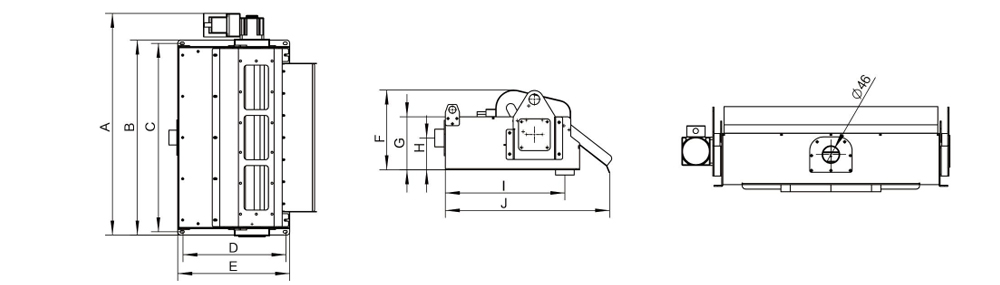

Model And Mounting Dimensions
| Model | Processing Power | Voltage | A | B | C | D | E | F | G | H | I | J |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CF-200CQ | 40L | 380v/220v | 403 | 312 | 290 | 350 | 380 | 225 | 150 | 90 | 338 | 464 |
| CF-300CQ | 60L | 380v/220v | 503 | 412 | 390 | 350 | 380 | 225 | 150 | 90 | 338 | 504 |
| CF-500CQ | 110L | 380v/220v | 753 | 662 | 640 | 350 | 380 | 225 | 150 | 90 | 338 | 464 |
| CF-800CQ | 200L | 380v/220v | 1053 | 962 | 940 | 450 | 480 | 245 | 170 | 110 | 438 | 564 |
Product Features
- The use of strong magnets, so that the filter surface flow path is suitable for oily coolant, so as to achieve high precision filtration.
- Rotary rubber roller design, prevent slipping, even easy to slip oil materials can also squeeze sludge.
- All stainless steel body, not easy to rust, not attached to cutting powder. easy to clean.
- Through the design of oil cooling special rubber roller, improve the oil removal rate.
- High durability roller, through excellent hardening treatment, to achieve high durability;6. Simple structure,easy to maintain.
