Refueling vehicle for the workshop
- Built-in 200 liter liquid storage tank, which can be filled by multiple machine tools at one time
- The device comes with rechargeable battery drive, can be used without AC power, convenient and fast
- Install the high-precision flow control system, which can set the filing amount according to the demand
- Built-in intelligent pressure sensor, with liquid gun, liquid feeding can be controlled immediately start and stop, easy to operate
- The filing pipe is equipped with automatic collection function, filing is completed, and the filing pipe is automatically withdrawn, which does not occupy the external space.
- The rechargeable battery can also be switched to the external conventional 220V power supply, flexible and convenient.

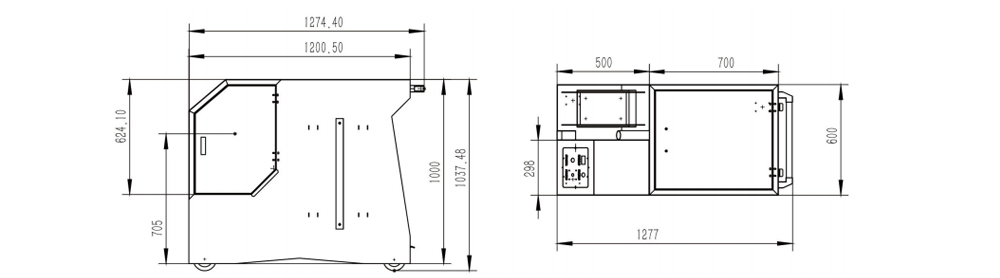

Model And Mounting Dimensions
| Battery Capacity | 104.6Ah | Operating Voltage | 12V | Maximum Transport Distance | 9m | Number Of Batteries | 2 |
|---|---|---|---|---|---|---|---|
| Box Capacity | 320L | Maximum Discharge | 45L/min | Machine Size（L*W*H） | 1280*600*1020mm | Power | 500W |
Product Overview
The filling truck is generally equipped with an intelligent proportioner to add evenly configured processing fluid to the water tank of the machine tool. The traditional filing method is that the worker pours the liquid into the machine tool through a small bucket or water tank, which is not only laborious and time-consuming, but also easy to spill the liquid everywhere in the workshop. The filling car has a large liquid storage capacity, the length of the coil is up to 9 meters, and it is equipped with a large-capacity battery and a high-power water pump. The liquid is quickly added to the water tank of the machine tool through the filing gun. The device has automatic shutdown function.
Product Use
Suitable for all kinds of machine tool cutting fluid. grinding fluid filling. It can be extended to other places of use where water liquids (non-corrosive) are required.
