High Quality Electrostatic Oil Mist Filter Collector
- The efficient and durable filter efficiency is especially suitable for the purification of a large number of small smoke produced by pure oil cutting.
- Used for all kinds of machine tools, such as high efficiency CNC machine tool, high efficiency gear machining machine tool and so on, can be captured less than 0.1um particle oil smoke and oil mist.
- Equipment only needs daily cleaning and maintenance, long-term use of no consumables, no subsequent use cost
- The capture efficiency is above 97%, and the purification efficiency is above 99%
- Easy to install, each purifier can be installed directly on the machine tool, on the support, easy to install and dismantle

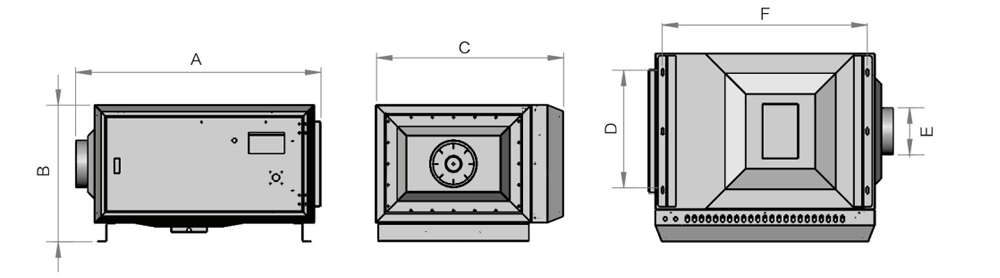

Product Size
| Model | A | B | C | D | E |
|---|---|---|---|---|---|
| CY-01JL | 1440 | 489 | 1470 | 483 | φ149 |
| CY-02JL | 1799 | 800 | 1799 | 799 | φ153 |
Machining industry
Gear hobbing machine, CNC machine tools, tool grinding, cold heading machine, heart walking, high frequency quenching, industrial equipment produced smoke,oil mist equipment;
Parts Cleaning
Industrial ultrasonic cleaning equipment, hydrocarbon cleaning equipment and cleaning equipment that produces water mist and oil mist, etc;
Other
Various mechanical equipment that produces water mist, oil mist and smoke;
Working Principle
The electrostatic oil mist purifier uses the dual function of mechanical purification and electrostatic purification, the first level is the ionizer, the front high-density filter grid, the water mist oil fog interception,the strong electric field charges the particles, becoming charged particles, these charged particles reach the second level dust collector immediately adsorbed by the collection electrode. Finally, clean air is discharged outside through the screen grating. in general, in industrial production, especially in some chemical industry production, it is used for workshop air or dust, and some harmful molecules are filtered,which plays a vital role.
Product Parameters
Model |
Power Supply | Motor Power | Air Volume | Number of Electric Fields | Air Inlet Pipe | Weight |
|---|---|---|---|---|---|---|
| V | KW | M³/h | Set | MM | KG | |
| CY-01JL | 380V | 1.1 | 2600 | 2 | 150 | 81 |
| CY-02JL | 380V | 2.2 | 3500 | 2 | 150 | 84 |
