Magnetic separator Water Tank Set
Magnetic separator + water tank set: composed of magnetic separator, water pump and water tank, the liquid discharged from the machine tool is separated and filtered through the magnetic separator and discharged into the water tank through the drain port to precipitate separation,and then the clean hydraulic pump is pumped to the machine tool to complete the automatic cycle separation process

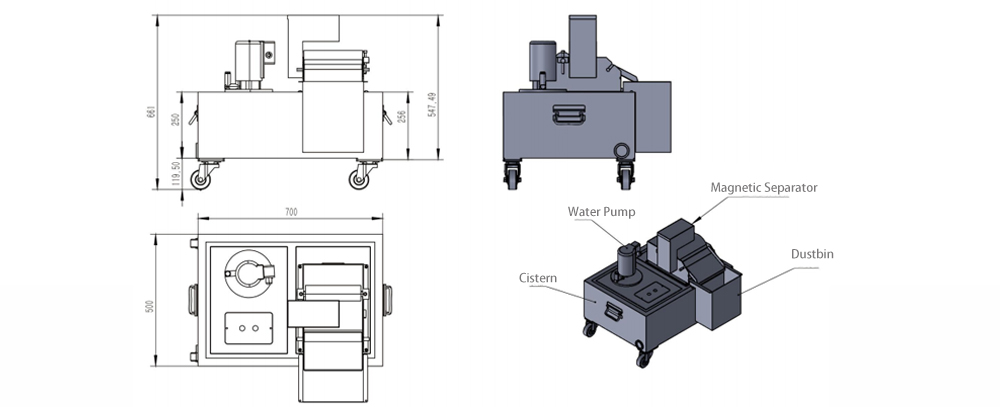

Model And Mounting Dimensions
| Model | Processing Power | Pump Power | Tank Size |
|---|---|---|---|
| CF-200 | 200L | 90w | 700mm*500mm*250mm |

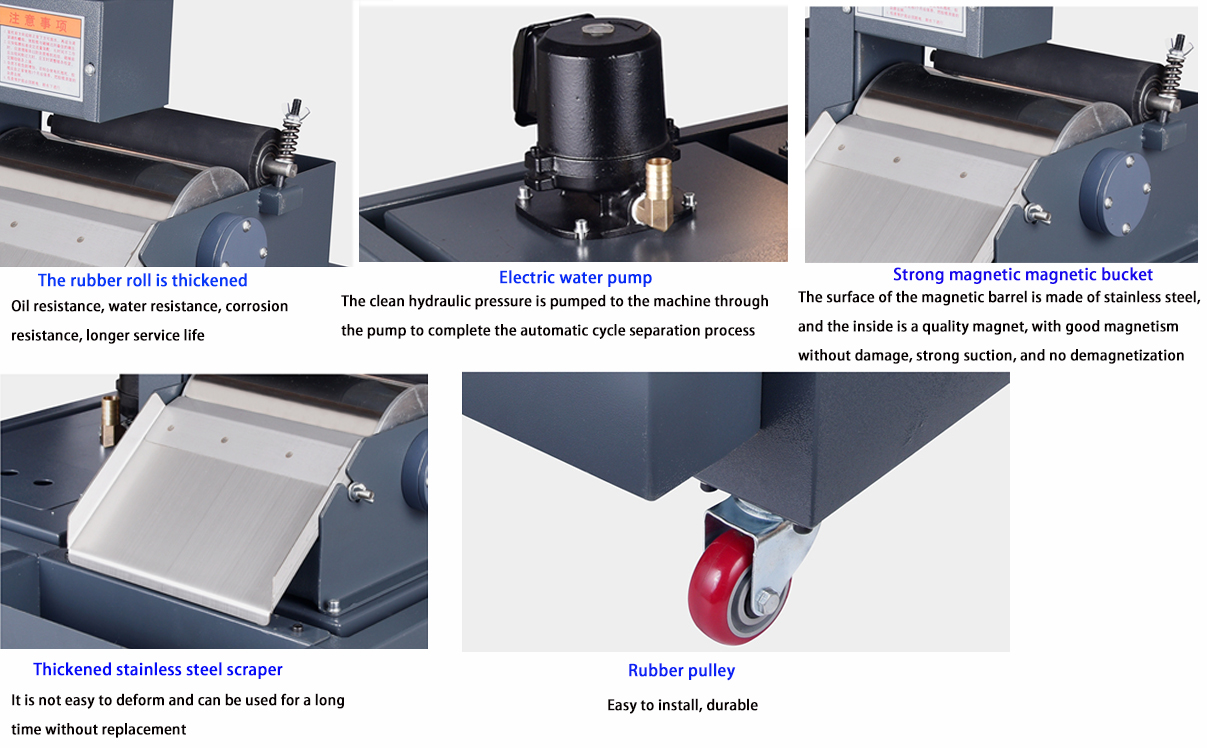

Product Details
Structural Principle
The magnetic separator is composed of two parts of the reducer and the magnetic roller, the reducer is driven by the chain toot ate the magnetic roller, the magnetic roller is equipped with a permanent strong magnet, the iron filings in the coolant adsorbed on the surface of the magnetic drum sleeve, the press roller squeezes out the coolant in the iron filings. and flows back to the liquid box,the iron filings are scraped off by the scraper into the sewage box.
