Manual Paper Tape Filter
Paper belt filter device is composed of liquid tank, collecting tank,filter non-woven fabric/paper tape, magnetic roller separation device liquid pump and other pats. The dirty liquid containing a large amount of impurities at work is first passed through the magnetic roller separation device (when the filter liquid has more magnetic conductive impurities, optional. implement secondary filtration to improve the filtering effect, A large number of magnetic conductive chips are separated. The chain wire mesh on the transmission mechanism and the paper tape laid on it are curved. when the dirty liquid passes through the paper tape, fine chips and impurities are absorbed to the upper surface of the paper tape. The eyebrow and impurities gradually accumulate until the paper tape is blocked. Manually pull the dirt and dirty paper tape into the garbage collection box.

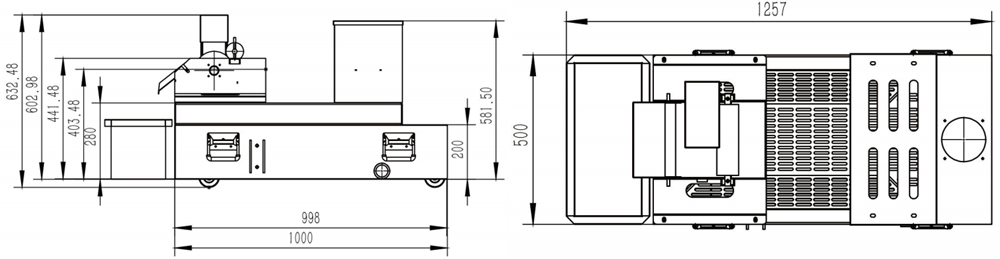

Model Specifications And Mounting Dimensions
Product Details
Product Feature
- Filter metal and non-metal
- Filter effect depends on the accuracy of filter paper, 35U, 25U and 10U are available
- The iron filings in the filter coolant output by the magnetic machine and the fine filtering by the paper tape can reduce the filter paper consumption and improve the filtration accuracy.
Structural Principle
The magnetic separator is composed of two parts of the reducer and the magnetic roller, the reducer is driven by the chain to rotate the magnetic roller, the magnetic roller is equipped with a permanent strong magnet,the iron filings in the coolant adsorbed on the surface of the magnetic drum sleeve, the press roller squeezes out the coolant in the iron filings, and flows back to the liquid box, the iron filings are scraped off by the scraper into the sewage box.
