Precision Filtration Water Drop Separator
- Water drop removal Rate at rated flow Rate 99%
- The product structure creates a swirl of air and uses centrifugal force to remove water droplets.

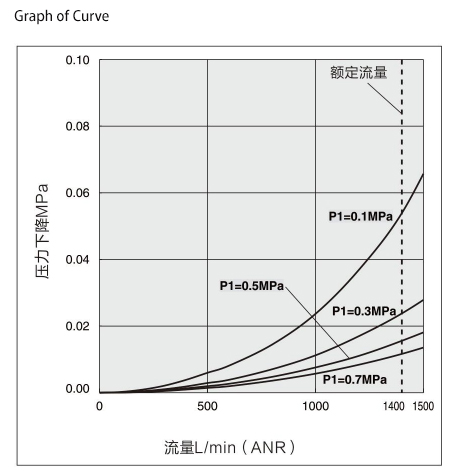

Graph of Curve
Matters Needing Attention
Note1: The water drop removal rate at rated flow rate is determined by our company, This product is designed to remove water droplets, noimoisture (water vapor). When the rated flow rate is not reached, the water drop removal rate is low.
Note2: Upstream pressure P1=0.7MPa. Please note that if the rated flow rate is exceeded, the stored condensate may be rolled up and discharged downstream.
Note3: This product can not remove oil, solid foreign matter.
Product Parameters
| Parameters | AF300-03 | DCH3000-03 |
|---|---|---|
| Nozzle Diameter | 3/8 | 3/8 |
| Flow Rate | 600L/min | 3000L/min |
| Working Fluid | Air | Air |
| Ambient Temperature And Use Fluid Temperature | -5~60℃ | 60℃ |
| Withstand Pressure Test Pressure | 1.5MPa | 1.5MPa |
| Set Pressure Range | 0.1-0.99MPa | 0.1-0.99MPa |
| Filtration Accuracy | 40μm | 40μm |
| Cup Body Material | Die-cast aluminum | 6061 Die-cast aluminum |
| Filtering Effect | 99% | 99% |
| Weight | 1.5Kg | 1.6Kg |
| Dimension | Φ115x240mm | Φ115x240mm |
| Service Life | 2.5-3years | 2.5-3years |
