Separator Belt Type Oil-water Series
The belt type oil-water separator is composed of a shell, a driving wheel, a driven wheel, an oil removal belt, an oil scraper, an oil guide plate, an oil collecting box, a reducer, etc. The reducer drives the driving wheel to rotate continuously,and the driving wheel drives the driven wheel to rotate through the oil removal belt. The oil removal strip is immersed in the oil mixing zone,and the oil slick can be glued from the oil mixing zone and scraped into the oil collecting box by the oil scraper by using the difference in the wetting performance between the cutting fluid and the oil slick.

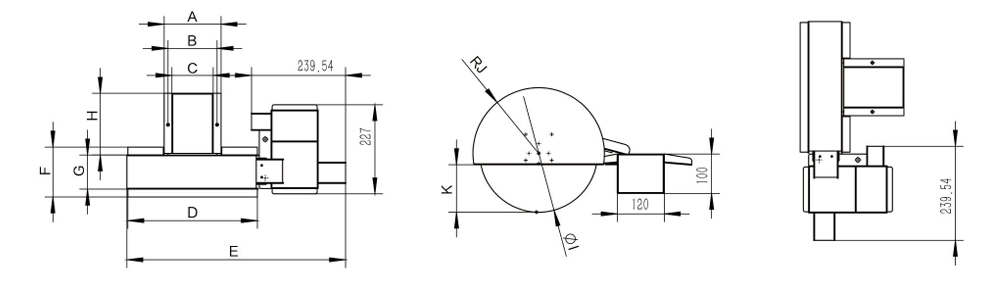

Model And Mounting Dimensions
| Model | Processing Power | Motor Power | A | B | C | D | E |
|---|---|---|---|---|---|---|---|
| YF-60 | 60L | 25w | 60 | 120 | 180 | 152 | 120 |
| YF-120 | 120L | 25w | 120 | 180 | 240 | 212 | 186 |
Detail Presentation
The belt type oil-water separator can be used to separate the oil slick on the surface of the cutting fluid, and is suitable for wet processing conditions such as emulsion and water-based synthetic liquid. The oil removal belt is an oil-wet material with a closed ring structure and has strong adhesion to oil slicks. After the oil slick on the liquid surface is adhered to by the oil removal belt, it is rotated to the oil scraping plate together with the oil removal belt, and the oil scraping plate will scrape off the adhered oil slick and send it to the designated position by the oil guide plate.
Product Features
1. Can be used for all kinds of machine tool oil and chip fluid separation. Compact structure, long service life; The use effect is especially obvious for the machine tools with more oil and metal powder in the cutting fluid:
2. After using the product,it can extend the service cycle of the coolant,reduce the wear of the tool, reduce the use cost of the tool, solve the abnormal odor caused by the deterioration of the coolant, improve the working environment, and reduce the labor intensity of the worker;
3. The separated waste oil can be recycled, waste into treasure, the use of this product not only solves the problem of environmental pollution of scrap coolant, but also helps to enhance the environmental image of the enterprise;
4. Containing two oil box, oil and water separation *, no consumable products;
5. Simple installation, easy to use, easy to clean;
6. Stainless steel disc.
